Fixed Mount 2D Barcode Scanner Module Wiegand RS485 USB RS232 for Kiosk Access Control Interactive Board
Product Definition

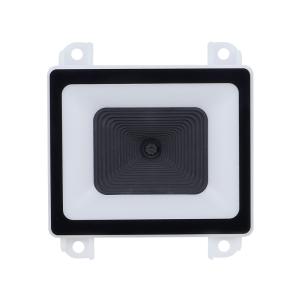

YJFIRST embedded QR Code module ES228 are widely used in self-service applications. The scanning and decoding
efficiency is becoming more important for smart terminals, kiosk and vending machine solution providers.The design of
ES228 is for easily integration into all kinds of kiosks to read 1D to 2D printed on paper, card and on-screen barcode fast
and accurately. Read all bar codes good under the sunlight or dim light environment.
Product Applications
This is an embedded barcode scanner. It can be applied in various scenarios. In retail stores, it can be embedded in self -
checkout counters, allowing customers to quickly scan product barcodes for payment. In logistics warehouses, it can be
integrated into sorting equipment, enabling automatic scanning and identification of package barcodes during the sorting
process. In hospitals, it can be embedded in medical equipment management systems to scan barcodes on medical
supplies for inventory management and usage tracking.
| Acquisition Performance |
| Sensor | Image Type,CMOS Sensor, 640*480 Pixel |
| Acquisition Speed | 1/120 fps |
| FOV | Diagonal 84°,Level 72°,Vertical 54° |
| Reading Performance |
| Precision | 2D≥7.5mil,1D≥5mil |
| | Close to the barcode,0-30cm(According to the different barcode) Code 128 10mil 18bytes Paper Code 40~150mm Code 128 18bytes Phone Code 40~160mm QR 10mil 160bytes Paper Code 30~100mm DM 15mil 100bytes Paper Code 30~120mm QR 18bytes Phone Code 30~200mm |
| Scan Angle | Roll 360°,Pitch ± 55°,Skew ± 55° |
| | 2D code: QR Code, Data Matrix, PDF417, Chinese sensible code, etc. |
| 1D Barcode: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,
Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar ,etc. |
| Print Contrast | 20% minimum reflectance |
| LED |
| Illumination | White LED |
| Physical Parameter |
| (L×W×H) | 61mm×58mm×25.2mm |
| Weight | about 50g |
| Interface |
| | Double 5-pin socket, 2.0mm Pitch, common in the POS industry. |
| 12pin 0.5mm Pitch FPC socket, up and down compatible. |
| | RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL 5 PIN: USB serial port or USB KBW (3.3V or 4-16V power) 5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power) 12 PIN: UART/USB(3.3V) |
| Scanning Mode | Command Mode/Sense Mode/Auto Reading Mode |
| Notification | Green LED, Beeper |
| Environmental Parameter |
| Operating Temperature | -30℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Humidity | 5% ~ 95% RH (non-condensing) |
| Ambient Light | Max.100,000 Lux |
| Electrical Parameter |
| | Input with 5-pin or 12-pin FPC: |
| the voltage 3-3.6V or 3.6-16V (optional) |
| Operating Current | <200mA (3.3v Input), <190mA (5v Input), <100mA(10v Input) |
| Standby Current | <5mA(3.3v Input) |
